Icon based interface makes the pump intuitive and easy to program and easy to learn. 24 languages supported making the pump easy to program and customisable to suit you!
The Dana Diabecare IIS is less expensive than comparable insulin pumps making it one of the most affordable options available.
The Dana Diabecare IIS is lighter and smaller than most comparable insulin pumps. Being so light and small makes it very comfortable and easy to wear.
|PUMP Type||Syringe (No cartridge)|
|Net weight||53g (without Battery) / 62g(including Battery)|
|Insulin reservoir||300 unit, plastic impact resistant, insulin compatible|
|Bolus setting||0 to 80 units. Bolus programs include normal, default, preset for meal appropriate, step programming|
|Bolus increments||0.05U / 0.1U / 0.5U / 1.0U|
|Basal profile||Unit/Hr, Unit/Day|
|Basal increments||0 to 16 units/hour|
|Temporary basal rate||0% ~ 200% (Increment or reduce in 10%)|
|Basal delivery||Every 4 min basis (varies, 0.5 u/hr = every 12 min)|
|Powersupply||Uses only one 3.6 V DC Lithium Battery|
|Energy saver||Screen sleep mode|
|Suspension mode||Manual and program suspend options|
|Safety checks||Dual microprocessors for continuous cross checking|
|Water resistant||IPX8 rate - waterproof|
|Insulin concentration||U-100 (default)|
|Time format||12 Hr (AM/PM) with optional military time|
|Alarm||Audible tone (beep)|
|Safety settings||Maximum bolus / Maximum basal / Maximum daily total /Low reservoir
Line occlusion / Low battery / Pump malfunction
|Display||Liquid Crystal Display (LCD) with backlight. Largest display screen of any pump available, simple icon driven menu, auto-display of remaining insulin and battery life.|
|Extras||1 leather cases and one impact resistant hard case included with each pump. Additional user accessories of belt holder, bathing bag and bra pouch included in convenient travel kit. Extra battery keys and linking screws available at no cost if misplaced by user.|
|Memory||Bolus history||Last 300 boluses with time and date stamp|
|Daily Total History||Last 60 daily insulin totals with time and date stamp|
|Prime History||Last 60 primes with time and date stamp|
|Alarm History||Last 50 alarms with time and date stamp|
|Guided Management Features||16 programmable modes including options for:|
|Audible reminders for bolus insulin / CHO check 30 minutes post meal|
|Bolus frequency restrictions
Presetting meal appropriate boluses
|Presetting of default bolus
PIN programming for healthcare professionals
/ caregivers to access guided management features

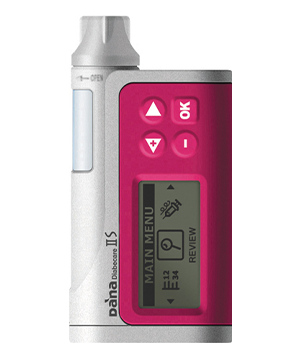

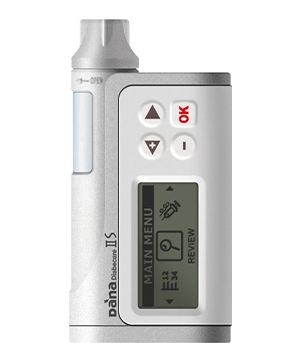

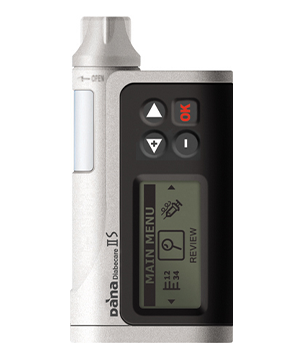

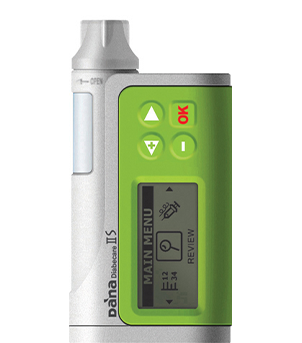

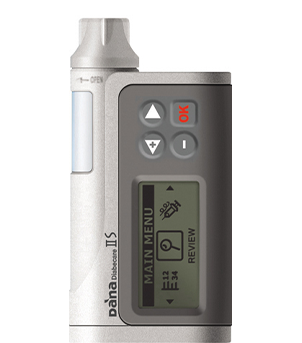

|Colors||Available in 5 colors|
The DANA Diabecare ⅡS Insulin Pump is intended for the subcutaneous delivery of insulin for the treatment of diabetes mellitus. The device is not intended for use with blood or blood products.
Insulin Pump therapy is not recommended for people whose vision or hearing does not allow recognition of pump signals and alarms.
The DANA Diabecare ⅡS system is only to be used by patients who have received training from a certified diabetes educator and/or insulin pump trainer and by advice from a physician. For safety and optimum benefits read the entire user manual before using the system.
