Soft Release O
The set that spins – freely rotates 360 degrees!
Increases site selection areas and ease of insertion.
● Features
Tubing
· Three layer non DEHP curl resistant designed for insulin pump use
· Blue tube makes insulin and air bubbles easier to see
· More discreet, matches dark clothing better
Septum
· Closed system proven to prevent germ migration
Low Profile
· Smooth dome shape – reduces clothing snags
· Low dexterity connector design, one-hand connection is easy
Body Grip Tape
· Body heat activated
· Semi-transparent, closely matches skin tone
· Minimizes sticky tape residue
Flexible Catheter
· 26 gauge makes Soft Release O one of the smallest catheters on the market
· Independent testing shows Soft Release O has the lowest penetration force of any 90 degree set (minimum pain during insertion and more comfort during use) 6mm & 9mm cannula lengths
Packaging
· High strength designed to protect set during travel.
● Catalogue Number
| Cat. Number | S6061 | S6091 | S8091 |
|---|---|---|---|
| Cannula length | 6mm | 9mm | 9mm |
| Tubing Length | 24” (60cm) | 24” (60cm) | 31” (80cm) |
Reusable auto insertion tool available
Soft Release ST
Soft cannula angled insertion
● Features
Tubing
· Designed for insulin pump usage
Low Profile
· Flat shape – reduces clothing snags
Tape
· Hypoallergenic reduces irritation
· Minimizes sticky tape residue
Soft Flexible Cannula
· 24 guage
· 19 mm length
· 15-30 degree angled
Packaging
· Sterile individually packed
● Catalogue Number
| Cat. Number | SR102 | SR112 |
|---|---|---|
| Cannula length | 19mm | 19mm |
| Tubing Length | 27” (70cm) | 43” (110cm) |
Reusable auto insertion tool available

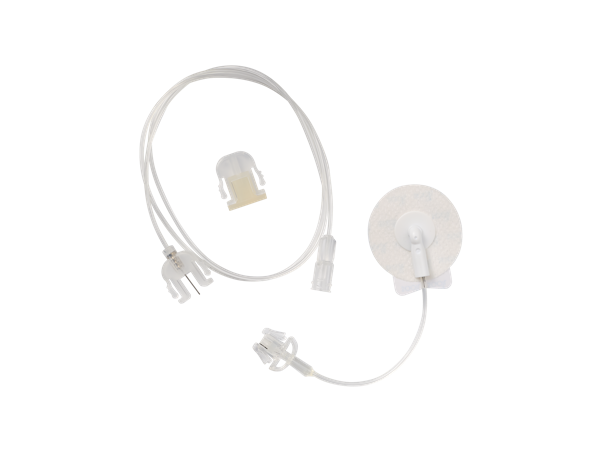

Easy Release
90degree fine steel cannula
● Features
Tubing
· Designed for insulin pump usage
· Spring clip mechanism – easy disconnect / reconnect
Low Profile
· Very slim shape – reduces clothing snags
Tape
· Hypoallergenic reduces irritation
· Minimizes sticky tape residue
Cannula
· 27G and 29G steel
· 90degree straight insertion
· 4.5mm, 7mm and 9mm lengths
Packaging
· Sterile individually packed
● Catalogue Number
| Stainless steel cannula Gauge/Length | Tubing Lenght | ||||
|---|---|---|---|---|---|
| 100mm | 600mm | 700mm | 1100mm | ||
| 27G | 4.5mm | SU303 | SU317 | SU315 | SU316 |
| 7mm | SU301 | SU318 | SU313 | SU311 | |
| 9mm | SU302 | SU319 | SU314 | SU312 | |
| 29G | 4.5mm | ER0145 | ER0645 | ER0745 | ER1145 |
| 7mm | ER0170 | ER0670 | ER0770 | ER1170 | |
| 9mm | ER0190 | ER0690 | ER0790 | ER1190 | |
Easy Release II
90degree fine steel cannula
● Features
Tubing
· Designed for insulin pump usage
· Spring clip mechanism – easy disconnect / reconnect
· Disconnection site not at cannula – reduces discomfort
Low Profile
· Very slim shape – reduces clothing snags
Tape
· Hypoallergenic reduces irritation
· Minimizes sticky tape residue
Cannula
· 27G steel
· 90degree straight insertion
· 4.5mm, 7mm and 9mm lengths
Packaging
· Sterile individually packed
● Catalogue Number
| Stainless steel cannula Gauge/Length | Tubing Lenght | ||||
|---|---|---|---|---|---|
| 100mm | 600mm | 700mm | 1100mm | ||
| 27G | 7mm | SU421 | SU431 | SU401 | SU411 |
| 9mm | SU422 | SU432 | SU402 | SU412 | |
Superline-ST
90degree steel cannula
● Features
Tubing
· Designed for insulin pump usage
Low Profile
· Slim shape – reduces clothing snags
Tape
· Hypoallergenic reduces irritation
· Minimizes sticky tape residue
Cannula
· 27G steel
· 90degree straight insertion
· 4.5mm, 7mm or 9mm lengths
Packaging
· Sterile individually packed
● Catalogue Number
| Cat. Number | SU203 | SU201 | SU202 |
|---|---|---|---|
| Cannula length | 4.5mm | 7mm | 9mm |
| Tubing length | 22” (55cm) | 22” (55cm) | 22” (55cm) |
Safety Information
Intended use
The DANA infusion sets are intended for the subcutaneous infusion of insulin from a SOOIL insulin pump. The infusion sets are neither intended nor indicated for use with blood.
General Precautions
- 1. Replace the reservoir and the infusion set every 3 days as recommended by your health care professional.
- 2. The reservoir and infusion set are intended for single use only. Do not reuse either the reservoir or infusion set. Reuse can cause serious illnesses (Septicemia, HBV, HVC, etc.) from bacterial infection.
- 3. Do not use the reservoir or infusion set if the package has been damaged, inadvertently opened or wet.
- 4. The shelf life of the reservoir and the infusion set is 3 years. Please check expiration dates regularly and dispose of any expired accessories.
- 5. Do not disconnect from your pump for more than one hour without discussing with your healthcare professional on how you should compensate for missed insulin. Carefully monitor blood glucose levels during periods of disconnection and after reconnection.
- 6. Check the infusion site often for redness, irritation and inflammation.
- 7. Remember to prime at least 15 units when you replace the reservoir and infusion set to remove for safe insulin delivery.
- updated on 2021-07-07
